Automatic Shrink Collating/Shrink Sealer (Silver Series)

  • Home
  • /
  • Automatic Shrink Collating/Shrink Sealer (Silver Series)

Equipment Brief Introduction

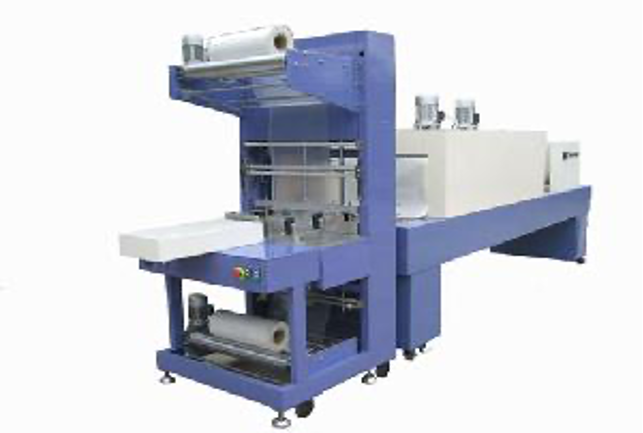

Auto film wrapping machine

Auto film wrapping machine is designed and manufactured based on the latest technology, for the demand of packing requirement of beverage production, as pure water, mineral water, juice, soft drink, etc. It is automatic wrapping, with shrink tunnel, packed perfectly.

Features of Auto Film Wrapping Machine

  • Automatic sorting conveyor system, which has the guiding separating stainless steel tube and the sorting plate making the bottles in standard roll for the wrapping purpose, to make sure that the group of bottles of 3 x 4, 4 x 6, or 2 x 6, 4 x 5 pcs of bottles in place for the wrapping need.

  • Automatic PE membrane processing part, which contains the upper and lower roll-feed PE membrane system in place and equipped with automatic infra-red sensoring system for checking the group of bottles being ready for wrapping and cutting sealing, the whole process is to be done instantly by the PLC controlsystem. The wrapped bottles will be pushed into the shrinking tunnel conveyor by the automatic pushing system, which pushes the wrapped bottle onto the conveyor of the shrinking tunnel.

  • Automatic hot wind shrinking tunnel, the shrinking system is the separated part of the machine has the separated controlling unit for the temperature controlled by touch screen temperature controlling system.

  • Touch screen control panel with PLC and electrical control system.

Main technical parameter of the equipment

Packaging speed 8-10 Packets/Min
Sealing and Cut Time/Temperature 0.5-1s / 180oC-260oC
Operating Power TN-S 380V 19kw
Air Pressure 0.6-0.8Mpa
Air Consumption 0.6m3/minute
Transfer Belt Dimension 304 mm
Dimension For The Whole Unit 6500 x 3200 x 2100 mm (LxWxH)

Semi-Automatic Shrink Wrapping Machine

Capacity For Beverages 2000 BPH

  • Semi-Automatic Machine Sleeve Wrapper with Shrink Tunnel with tray packing multiple wrapping systems using LDPE Material with 2-side opening for heavy cases.

  • The system consists of 2 units, one a wrapping unit that is used to wrap the product with the shrink film and the second unit where the shrinking of the product with the film takes place.

  • The product to be wrapped will be placed in the base tary and fed into the auto-wrapping machine.

  • The bottles with the tray must be placed before the pneumatic pusher arm.

  • Once the product has been placed manually pusher pulse has to be given manually.

  • The tray with the bottles will fed into the machine for sleeve wrapping over the product, and then the sealing pulse must be given.
