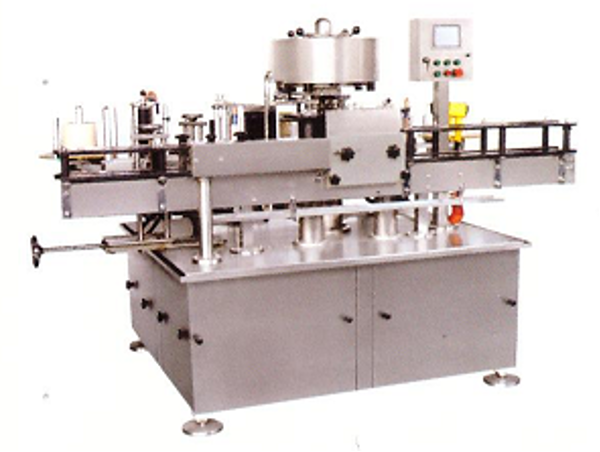

Auto Bopp Labelling Machine

• Fully automatic linear opeartion for 200ml-2000ml bottles(with certain change of parts )

• Machine if built fully in stainless steel

• Height adjustments to suit various bottle sizes.

• Imported gluing unit sprays minimal quantity of hot melt adhesive (very minimal wastage.)

• No cleaning of the nozzle or glue unit,before production (less maintenane & saves time)

• Minimal change –over time,to shift fromone size to an another size of the bottle

• Fitted with PLC control.

Dimension of the m/e: 5.5 mtr(L) X1.2 mtr(W)X 2.0 mtr(H) (approx)

• Frame structure and side cover will be of S.S 304 material rest parts & contact parts will be also in SS 304 (ceratin internal mechanism of the machine,such as cam ,chainand sprockets etc. that will be internal & not exposed will be of (S.S).

• 3 HP geared motor for unwind unit.

• Rotary turret for label holding attachment for labelling.

• Servo meter will be panasonic make of 2kw for nip roller.

• 3 HP motor coupled with bonfigoli gear box for main drive.

• Vacuum pump will be of 3HP.

• S.S Infeed & S.S outfeed conveyor.

• 1 HP geared motor of bonfiglioli/hindustan nake-1no. (For conveyor).
