Fruit and Vegetable Processing

Inspection, Washing and peeling Machines/ Equipments

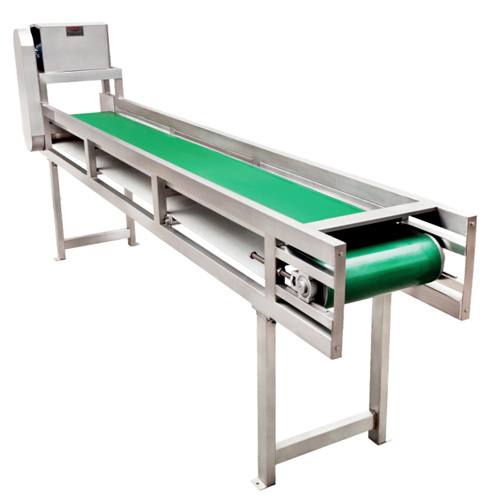

IN-FEED CONVEYOR

HS CODE:84282011

Function : They are used for conveying of various fruits/vegetables for Washing/Sorting/Grading/Inspection.

Technical Specification:

  • Structure in stainless steel.

  • Length: As per required capacity/Fruit to be handled.

  • Belt in heavy duty alimentary polyvinyl chloride material.

  • SS side guides.

  • Suitable SS diverting arrangement.

  • Suitable drive system.

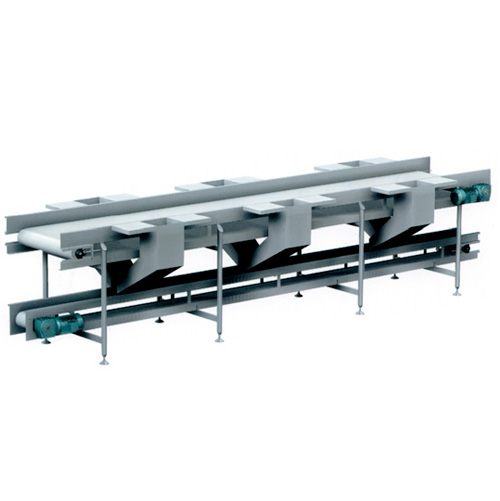

2-TIER INSPECTION & CUTTING CONVEYOR

HS CODE: 39269010

Technical Specification:

  • Conveyor belt in sanitary food grade material, suitable for peeling, inspecting de stoning Operations of fruits.

  • Main belt is distributed in three parts width wise. Whole fruit will come on the two sides and the Cut, dressed and cleaned fruits shall be handpicked into the centre part.

  • The bottom belt will carry the waste separately to the waste screw conveyor.

  • All belts are provided with fixed speed geared motors and sprocket and chain drive, which facilitates to change the belt speed as per requirement.

  • Service accessories like nylon pieces for fruit cutting, scrapping blades

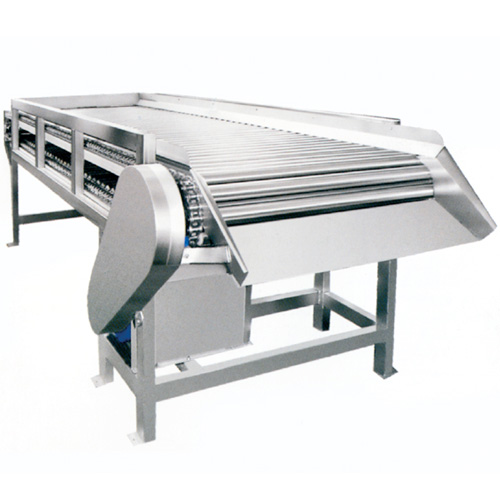

ROLLER FRUIT SORTING CONVEYOR at return side of the belt etc.

HS CODE: 84389090

Suitable for sorting/grading of fresh fruits/vegetables. It consists of SS/PVC Roller type chain which conveys fruits while simultaneously the water excess gets removed. Capacities: 1MT to 10MT/ht.

Fruit & Vegetable Washer Machine

HS CODE: 84386000

Technical Specification:

  • Designed to thoroughly clean and wash multiple fruits/vegetables like mango, tomato, litchi, apple, leafy vegetables etc.

  • The washer is made of SS 304, confirms to all sanitary norms.

  • The washer is designed to handle diverse types of fruits and vegetables without damaging the surface while thoroughly cleaning them.

  • Equipped with high pressurized blowing unit with blower air grids to produce strong water agitation which tumble washes different types of fruits & vegetables including leafy, root vegetable.

  • The fruits and vegetables are passed through water turbulence which thoroughly washes the dirt off them.

  • After the fruits and vegetables are washed, they are picked up by an uplift conveyor where it is again washed with secondary wash system fed by fresh water infeed.

  • Out feed conveyor fitted with a specially designed SS slats for conveying fruit/vegetable onto the next stage after washing.

  • Fitted with 1 HP geared motor on takeoff conveyor with AC variable drive of make Danfoss/Siemens. This facilitates adjustment to various quantities/ batch being washed.

  • The washer is fitted with water recirculation system with inbuilt filtration. This feature enables the water to be reused. It is fitted with 2 stage filtration system for cleaning of water of external mud, leaves and then the clean water is re- circulated back to the main wash tank.

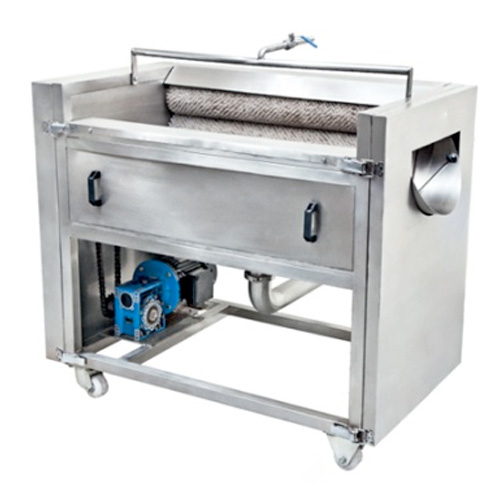

Root Vegetable Peeler/Washer

HS CODE : 84386000

Technical Specification:

  • Advanced second generation design, hygienic way to peel over the convectional carborundum based peelers.

  • Suitable to peel/clean wash various vegetables like ginger/carrot/potato/turnip/radish etc.

  • The washer is equipped with 7/9 rotating soft/hard brushes which thoroughly clean the vegetables while simultaneously peeling them.

  • Washer is made of SS-304 and fitted with nylon food grade brushes confirm to food sanitary standards.

  • The washer is fitted with water spray jet arrangement which simultaneously washes/cleans the vegetables.

  • Unique designs of the washer enables user to visually inspect the level of wash/peel achieved.

  • After the wash, the cleaned vegetables are removed from the side exit outlet.

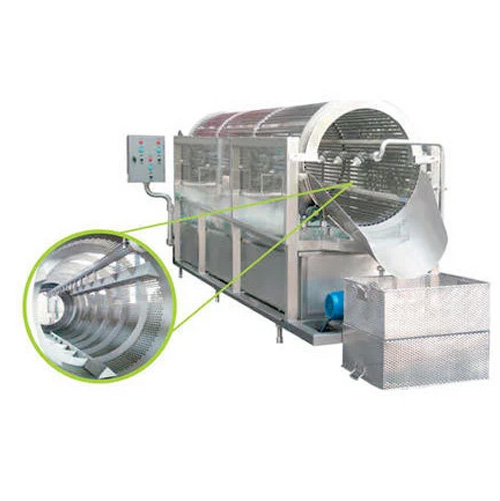

Rotary Drum Washer

Technical Specification:

  • Designed to thoroughly clean and wash multiple hard vegetables like ginger,carrots,garlic,onion etc.

  • The washer is made of SS 304, confirms to all sanitary norms.

  • The washer is designed to handle diverse types of vegetables without damaging the surface while thoroughly cleaning them.

  • Washer is made of SS-304 and fitted with nylon food grade brushes confirm to food sanitary standards.
