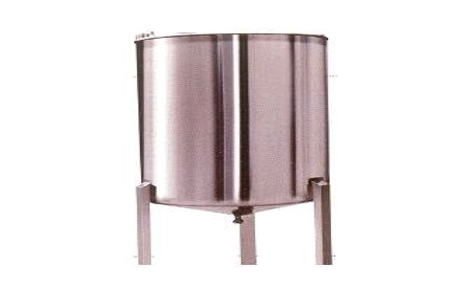

Technical Specification:

• Suitable for collection of juice / pulp from juice extractor/pulper/cans.

• Made of SS 304, mounted on SS legs with ball feet/base plate.

• Complete with inlet/outlet valve and split half cover

• The cover is fitted with removable mesh cover to support cans while being emptied.

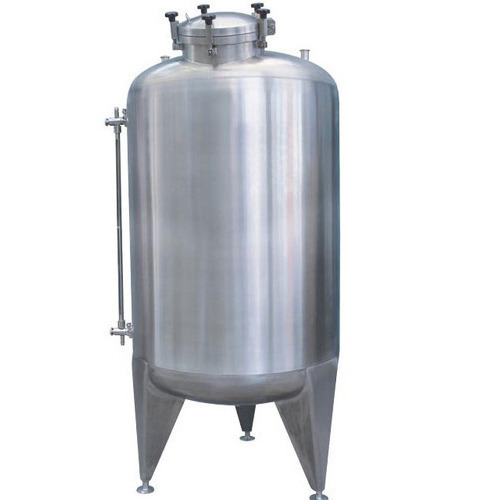

Technical Specification:

• Suitable for holding/storage/standardization of various liquids like juice/pulp/sugar syrup/puree etc.

• Made of SS 304, cylindrical tank with inlet/outlet valve/air vent/CIP ball removable half spilt cover/manhole cover.

• The tanks are fitted with level measurement/indicator for accurate measurement indication of the liquid.

• Fitted with conical bottom /SS legs with ball feet/base plate.

• The tanks are polished to 150 grits conforming to HACCP specifications/standard.

• The tank can be fitted with slow speed stirrer for blending/mixing.

• Suitable for holding/storage/standardization of various liquids like juice/pulp/sugar syrup/puree etc.

• Made of SS 304/316, cylindrical tank with inlet/outlet valve/air vent/CIP ball removable half spilt cover/manhole cover.

• The tanks are fitted with level measurement/indicator for accurate measurement indication of the liquid.

• Fitted with conical bottom /SS legs with ball feet/base plate.

• The tanks are polished to 150 grits conforming to HACCP specifications/standard.

• The tank can be fitted with slow speed stirrer for blending/mixing.

Technical Specification:

• Suitable to store pulp/juices/liquids to maintain temperature while filling.

• Outer shell: thickness of shell be 2.0mm

• The tank is duly insulated with 80mm glass wool, duly cladded with SS outer layer.

• Insulation: Insulated with 80 mm glass wool work.

• Fine polished to 150 grit, confirms to HACCP standards.

• Fitted with level indicator

• Fitted with Suitable inlet/outlet valves/air vent

• The tank is available with normal/high position height duly fitted with SS legs.

• The tank can also be fitted with slow speed stirrer with geared motor/SS shaft mounted with stirrer blades to stirr/mix the liquid while storage.

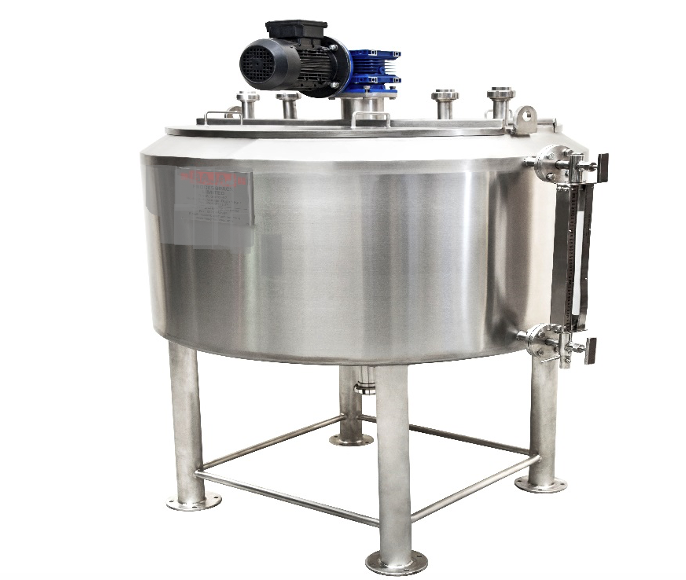

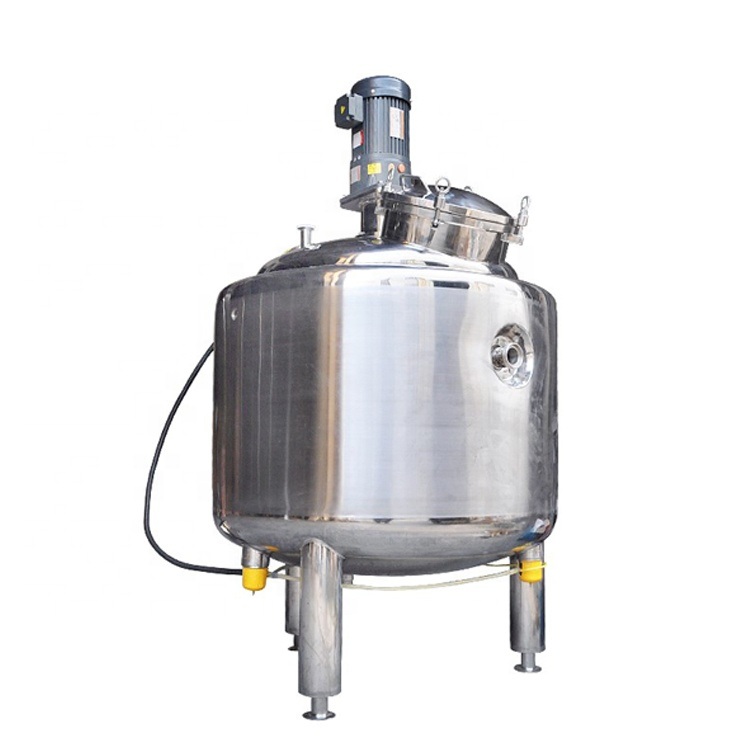

Technical Specification:

• Suitable to dissolve sugar/ hot blend/preparation of RTS/Juice blend etc.

• The tank is steam jacketed, duly insulated and triple jacketed with outer layer of Al/SS.

• The tank is duly insulated with glass wool and then third outer layer of SS/Al.

• The tank is fitted with slow speed agitator for slow speed mixing of the product while it's heated.

• The tank would be fitted with CIP spray ball, air vent, conical bottom, suitable inlet/outlet valves.
